High Pressure Jacketed Liposome Extruder | Genizer Machinery

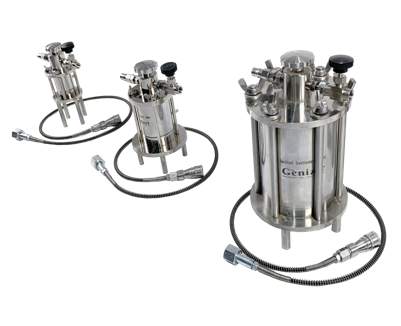

Genizer Jacketed Liposome Extruders is compressed air driven, temperature-controlled, from testing to manufacture production of liposome and lipopolyplex for drug and gene delivery. Homogenous samples can be produced quickly and easily in minutes; typically 5-10 passes are sufficient to produce a sample with uniform liposome size. The Jacketed Extruder is virtually no dead-volume and is easily cleaned and suitable for sterilization. The Genizer Jacketed Liposome Extruders are designed to generate homogeneous unilamellar liposomes and Lipopolyplex. Extrusion is a one-step procedure that produces liposomes by forcing lipid suspensions of drug, protein, or gene through track-etched filters with defined pore size. It is relatively gentle, exposing the formulation to moderate pressures up to 3,000 psi at controlled temperatures. The Genizer Jacketed Extruder is easily cleaned and suitable for sterilization, compliance with FDA and GMP sanitary standards in Pharmaceuticals.
Unique Benefits
Genizer Jacketed Liposome Extruders is compressed air driven, temperature-controlled, from testing to manufacture production of liposome and lipopolyplex for drug and gene delivery. Homogenous samples can be produced quickly and easily in minutes; typically 5-10 passes are sufficient to produce a sample with a uniform liposome size. The Jacketed Extruder is virtually no dead-volume and is easily cleaned and suitable for sterilization.
l Sanitary: 316L Stainless Steel
l Efficient: micron pore supporting maximize the pressure and lower the contamination
l Compatibility: GMP and FDA compliant
The Genizer Jacketed Liposome Extruders are designed to generate homogeneous unilamellar liposomes and Lipopolyplex. Extrusion is a one-step procedure that produces liposomes by forcing lipid suspensions of drug, protein or gene through track-etched filters with defined pore size. It is relatively gentle, exposing the formulation to moderate pressures up to 3,000 psi at controlled temperatures. The Genizer Jacketed Extruder is easily cleaned and suitable for sterilization, compliance with FDA and GMP sanitary standards in Pharmaceuticals.
Catalog No. | GJE-10mL | GJE-100mL | GJE-800mL | GJE-3000mL | GJE-10000mL |
Sample Size | 10mL | 100mL | 800mL | 3000mL | 10000mL |
Dimensions | 23×13×25(cm) | 23×20×32(cm) | 25×25×37(cm) | 30×25×55(cm) | 45×40×65(cm) |
Weight | 4kg | 7kg | 20kg | 45kg | 120kg |
Min. Sample Size | 5mL | 10mL | 100mL | 800mL | 2000mL |
Max. Pressure | 3,000psi-6,000psi |
Power Type | Compressed Gas |
Nano-Membrane | Track etched liposome membrane |
Parts 1) Liposome Jacketed Extruder 2) 10 Pieces of 100nm membrane

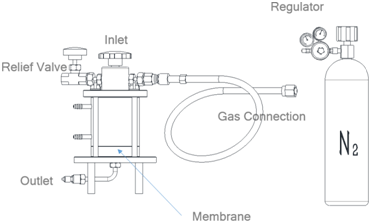

Feed Reservoir Temperature control jacketed cylinder
Nitrogen tubing G5/8"- 14 TPI BSP inlet Nitrogen High-Pressure soft tubing; adaptor with 3/8 inch male NPT and 1/4 inch female flare outlet
Nano Membrane 100nm track-etched polycarbonate membrane
Compatibility Some Parts are compatible with lipex TM in Northern Lipids
Product Material 316L Stainless Steel, Viton
Material Standard Pharmaceutical Grad, FDA & GMP approvable
Warranty 1 Year against any manufacturing defects
Available Option
Detecter Pressure gauge,Pressure Temperature Transducer
Inlet Type Tri-clamp or luer
Nano Membrane 30, 50, 80, 100, 200, 400, 800nm, 2μm, 5μm, 10μm, 20μm, 30μm, track-etched membrane
Multi Extruder Parallel or series connection of Multi Excruder
If you are looking high pressure homogenizer manufacturer companies and suppliers that offer the reasonable price? You can find leading companies details here :
Phone: +1(323) 825-1851
Fax : +1(323) 978-4693
Email: Nano@Genizer.com http://www.genizer.com/high-pressure-transmitter-for- multi-purpose_p0037.html
Discount available for public research. Genizer.com reserves the right to change specifications without notice.
